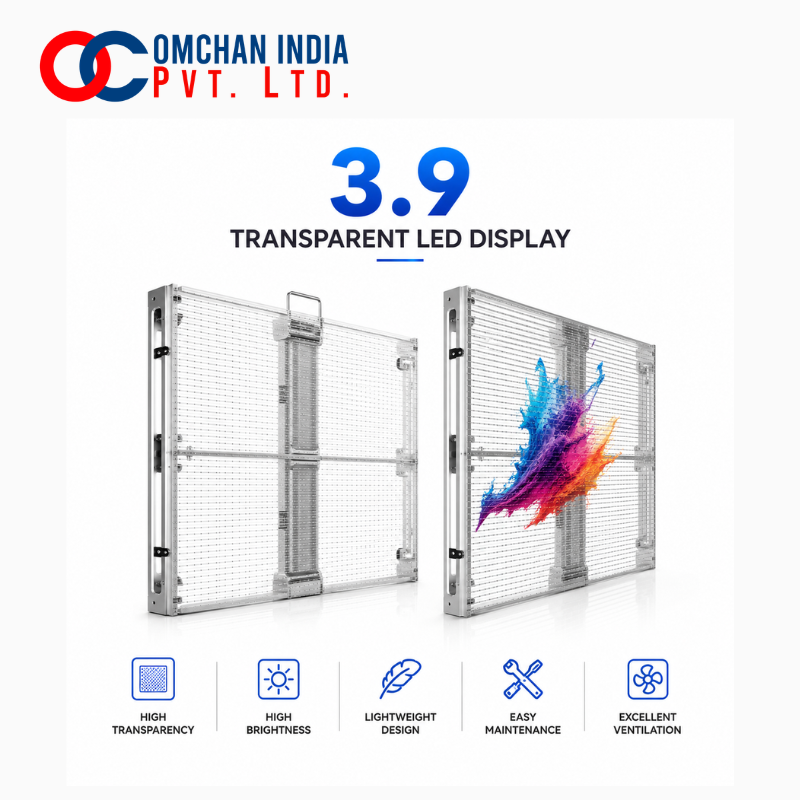

3.9 × 7.8 Transparent LED Display
The 3.9 × 7.8 Transparent LED Display from Omchan India Pvt.
Transparent LED Display for Modern Architecture, Retail Spaces, and Commercial Installations
The 3.9 × 7.8 Transparent LED Display from Omchan India Pvt. Ltd. combines digital communication with architectural aesthetics. Designed with over 70% transparency, high brightness, and lightweight construction, this transparent LED screen enables businesses to display dynamic content without blocking natural visibility through glass surfaces.
Key Product Highlights:
- 3.9 × 7.8 mm Pixel Pitch
- More Than 70% Transparency
- Brightness Above 5500 cd/sqm
- Lightweight 14 Kg/sqm Design
Premium Transparent LED Display Solution
The 3.9 × 7.8 Transparent LED Display is designed for businesses and organisations seeking innovative digital display solutions without compromising architectural aesthetics. Unlike conventional LED screens, transparent LED technology allows content to be displayed while maintaining visibility through glass surfaces, creating a unique visual experience.
With transparency levels exceeding 70%, this display solution is ideal for storefront windows, glass facades, showrooms, corporate buildings, airports, shopping malls, and architectural media installations. The lightweight design and slim profile help support seamless integration into modern structures while maintaining visual appeal.
Featuring brightness above 5500 cd/sqm and a viewing angle of 160°, the display ensures strong visibility across diverse viewing positions. A refresh rate exceeding 3840Hz supports smooth content playback, making it suitable for advertising, branding, product showcases, and information display applications.
Manufactured and supplied by Omchan India Pvt. Ltd., the 3.9 × 7.8 Transparent LED Display delivers a balance of visual impact, transparency, and operational efficiency.
It enables businesses to transform ordinary glass surfaces into engaging digital communication platforms while preserving architectural design elements.
KEY FEATURES OF P3.9 TRANSPARENT LED DISPLAY
High Transparency Design
Transparency greater than 70% helps maintain visibility through glass surfaces while displaying digital content.
High Brightness Performance
Brightness above 5500 cd/sqm supports strong visual visibility in various indoor and outdoor-facing applications.
Wide Viewing Angle
160° viewing angle allows content visibility from multiple positions without significant image distortion.
Lightweight Construction
A weight of 14 kg/sqm supports easier installation and integration into architectural environments.
High Refresh Rate
Refresh rate above 3840Hz supports smooth content playback and improved visual consistency.
Fine Pixel Pitch
3.9 × 7.8 mm pixel pitch supports detailed content presentation with enhanced image quality.
Slim Architectural Integration
Designed for modern building facades, glass walls, and transparent media installations.
Commercial Display Solution
Suitable for retail, corporate, hospitality, transportation, and public communication environments.
Benefits of P3.9 Transparent LED Display
Maintains Architectural Visibility
Allows businesses to display content without blocking glass surfaces or exterior views.
Enhances Brand Presence
Creates modern and visually appealing advertising experiences that strengthen brand identity.
Supports Daytime Visibility
High brightness performance helps maintain content visibility even in bright environments.
Maximises Storefront Utilisation
Transforms unused glass surfaces into revenue-generating digital display assets.
Improves Customer Engagement
Dynamic content helps attract attention, increase foot traffic, and enhance audience interaction.
Lightweight Installation
Reduced structural load compared to conventional display systems supports easier deployment.
Modern Aesthetic Appeal
Complements contemporary architectural designs while preserving building aesthetics.
Long-Term Commercial Value
Provides an innovative digital communication platform for sustainable business promotion.
Transparent LED Display – 3.9 × 7.8 mm Specifications
The 3.9 × 7.8 Transparent LED Display combines high transparency, strong brightness, and reliable performance for commercial advertising, architectural media, and glass façade applications.
| Specification | Details |
|---|---|
| Pixel Pitch (mm) | 3.9 × 7.8 |
| LED Type | SMD1921 |
| Module Size (mm) | 500 × 125 |
| Module Resolution | 128 × 16 Dots |
| Brightness | > 5500 cd/sqm |
| Viewing Angle | 160° |
| Pixel Density | 32,768 Dots/sqm |
| Frame Change Frequency | 50–60 Hz |
| Scanning Mode | 1/4 Scanning |
| Refresh Rate | > 3840 Hz |
| Maximum Power Consumption | ≤ 720W/sqm |
| Transparency | > 70% |
| Gray Scale | 16 Bit |
| Protection Rating | IP4X |
| Heat Dissipation | 70 W |
| Weight | 14 Kg/sqm |
| Working Environment | 20°C – 45°C |
| Working Voltage | 180–220V (±10%) |
Applications of P0.9 Indoor COB LED Screen
The P0.9 Indoor COB LED Screen is designed for a wide range of professional environments requiring exceptional visual quality, reliability, and seamless performance.
Corporate Boardrooms
Control Rooms
Broadcast Studios
Digital Signage Networks
Experience Centers
Conference Halls
Education Facilities
Retail Showrooms
Industries Using P0.9 Indoor COB LED Screen
The P0.9 Indoor COB LED Screen is used across multiple industries where high-resolution visuals, reliability, and professional presentation are essential.
Corporate & Enterprise
Government & Public Sector
Media & Broadcasting
Retail & Commercial
Education
Healthcare
Hospitality
Transportation
Why Choose Omchan India
OEM Manufacturing Expertise
Specialised manufacturer and supplier of LED display solutions.
Certified Quality Standards
ISO 9001, BIS, CE, RoHS, and FCC-certified company.
Reliable Product Performance
Designed for durability and consistent operational performance.
Technical Support
Professional guidance from project planning to deployment.
Wide Product Portfolio
Complete range of LED video walls, transparent displays, and digital signage solutions.
Regional Supply Capability
Strong project network across multiple Indian markets.
Installation & Maintenance Guidelines
Transparent LED Displays require careful planning of installation surfaces, mounting structures, content strategy, and viewing conditions. Since these displays are often installed on glass facades and storefront windows, structural compatibility should be evaluated during project planning.
Proper cable management and power distribution should be considered to maintain a clean architectural appearance. Installation should be performed in accordance with engineering recommendations and site-specific requirements.
Routine maintenance should include inspections of modules, controllers, signal systems, and power connections. Periodic cleaning helps maintain display visibility and transparency performance.
Businesses should work with Omchan India’s technical team to ensure optimal system design, installation planning, and long-term operational efficiency.
Frequently Asked Questions
1. What is a Transparent LED Display?
2. Where are Transparent LED Displays commonly used?
3. What is the transparency level of this display?
4. What is the brightness level?
5. What is the viewing angle?
6. Can it be installed on glass surfaces?
7. What is the refresh rate?
8. Is it suitable for advertising?
9. What is the weight of the display?
10. Does Omchan India provide project consultation?
